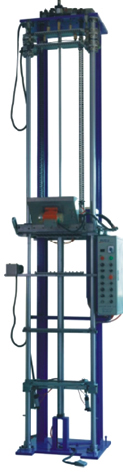

FILLING MACHINE TL -106

FILLING MACHINE TL -106

Is used to fill the tubes with mgo. it is applicable to tubes with large diameter and double aluminium tubes.

FUNCTIONS :

1. PLC automatically controlled, control the oscillation frequency by electron speed regulator.
2. Powder filling density could be above 2.17g/cm3. Almost zero MgO loss.
3. Tube diameter :below 1Bmm; Tube length: below 3m. It can be custom-made.
4. The guide tube moving speed controlled by frequency control.
5. 12,18,24,36 and 48 position machines are available to suit customer's production requirements.

MAIN TECHNICAL PARAMETERS

1. Power supply : 220V, 50Hz
2. Rated power : 1.5KW
3. Air supply : 5 -7kg/cm2
4. Efficiency: 6500pcs/8h(tube length 250mm)
5. Size (LxWxH) : 1000x1000x3200(mm) (1meter tube)
6. Weight : 700kg.
