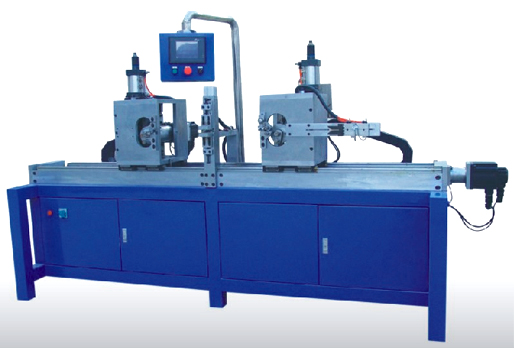

DOUBLE M SHAPED TUBE BENDING MACHINE TL -281

DOUBLE M SHAPED TUBE BENDING MACHINE TL -281

Is used to bend the tubes to M-shaped,N-shaped,square and so on.

FUNCTIONS :

1. PLC automatically controlled, human-computer interface, bending tube parameters can be changed.
2. Load material manually. pneumatic clamping, bend 5 pcs at a time (Φ6.5mm)
3. Bend automatically according to the presetted parameter.
4. Main parts:Servo motor, reduction gear, ball bearing, precision return board and control
5. Applicable tube length: below 21 OOmm (over this range can be custom-made)
6. Applicable tube diameter: ΦP6.5mm - Φ12mm
7. Show how to clear fault automatically.

MAIN TECHNICAL PARAMETERS

1. Power supply : Triphase 380V, 50Hz
2. Air supply : 4 -7kg/cm2
3. Rated power : 5KW
4. Efficiency : 8000pcs -12000pcs/8h
5. Applicable tube diameter : Φ6.0mm - Φ12mm
6. Applicable tube length : ≤ 2200mm
7. Size (LxWxH) :2900x900x1700(mm)
8. Weight : 1000kg
