"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

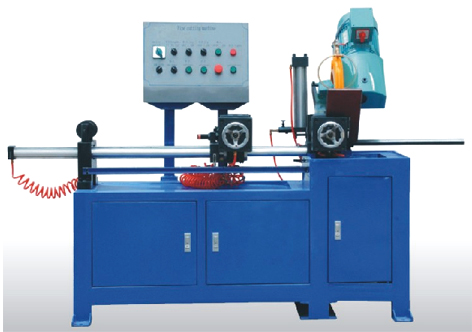

Automatic Tube Cutting Machine TL -108


Heating Elements
Heating Elements
Mainly used to cut copper, iron, aluminum, stainless steel tubes and rods. kinds of tubes with different shapes and different materials.

Functions :

1. PLC controlled automatically, load and cut material automatically.

2. Two kinds of sawblade speed, pneumatic convert to hydraulic and the speed of sawblade is adjustable.

3. V-shaped collets move at the same time. ( Φ8.0mm tube, clamp 25pcs at a time)

4. Tube length after cutling: 200mm - 2300mm

5. Jaw opening: 1OOmm


Main Technical Parameters

1. Power suppiy: Triphase 380V, 50Hz

2. Rated power: 1.6KW

3. Air supply: 5 -7kg/cm2

4. Efficiency: 30000pcs - 50000pcs (Φ8.0mm copper tube)

5. Size (LxWxH) :1500x800x1500(mm)

6. Weight: 550kg
