"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

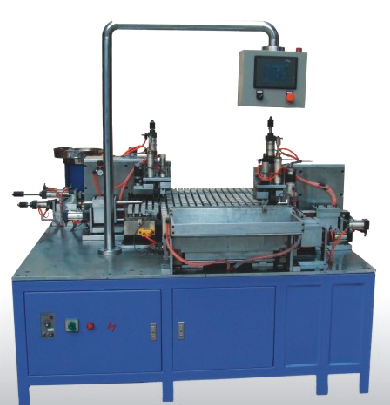

Automatic Coil And Pin Assembling Machine TL -283

Heating Elements
Heating Elements
is used to assemble terminal pin with coil and plug.
It also welds the terminal pin and coil.

Functions :

1. The machine can feed the coil, terminal pin, assembling and welding automatically.

2. Easy operation, high production.

Main Technical Parameters

1. Power supply: Tri-phase 380V±10%, 50HZ

2. Rated power: 11 KW

3. Air supply: 0.5 - O.7MPa

4. Pin length: 47-100mm

5. Coillength: 50 - 300mm

6. Coil diameter: 0.2 - 0.6mm

7. Efficiency: 900 - 1400pcs/h

8. Size(L * W * H) : 1800*1700*1800(mm)

9. Weight: 900KG
