"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

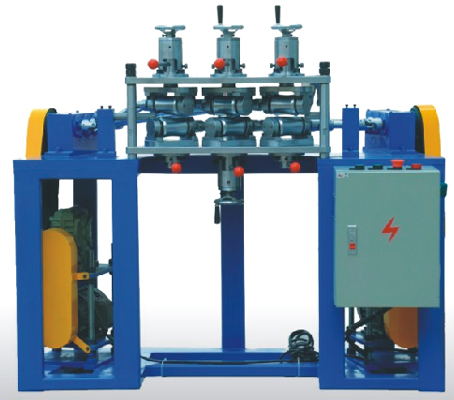

Straightening Machine TL -125

Straightening Machine TL -125
Is used to straighten kinds of annealed tubes or rods.

Functions :

1. The height and angle of rollers are adjustable, can satisfy kinds of specifications.

2. Adopts hyperboloid roller design which can improve the surface and roundness of tubes.

3. Six durable alloy tool steel rollers.

4. Easy to operate.

Main Technical Parameters

1. Power supply: Triphase 380V, 50Hz

2. Rated power: 1.5KW

3. Applicable tube diameter: Φ5mm - Φ21mm (over this range can be custom-made)

4. Applicable tube length: ≥250mm

5. Size (LxWxH) :1300x700x1200(mm)

6. Weight: 360kg
