"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

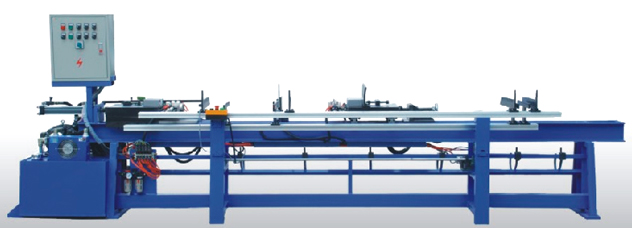

Hydraulic Tube Stretching Machine TL - 159


Hydraulic Tube Stretching Machine TL - 159
Is used to stretch tubes with different length to equal length.

Functions :

1. Advanced technology which cuts the cost

2. Hydraulic stretching, stable quality.

3. PLC automatic controlled. easy to operate.

4. Accuracy: + /-0.5mm


Main Technical Parameters

1. Power supply: Triphase 380V 50Hz

2. Rated power:3.8KW

3. Air supply:5-7 kg/cm2

4. Applicable tube diameter: Φ6mm-Φ16mm ( It can be custom-made)

5. Efficiency: 5000pcs/8h

6. Size ( L * W * H ) : 4600*1200*1650 ( mm )

7. Weight: 720kg
