"The Displayed machines are specifically for the manufacturer of Tubular Heating Elements"

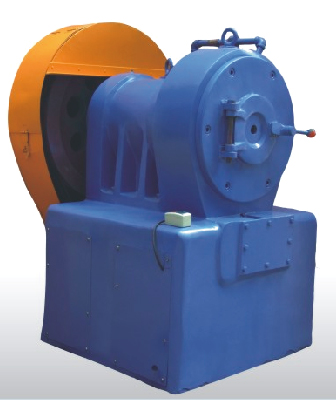

Cartridge Heater Swaging Machine TL - 347

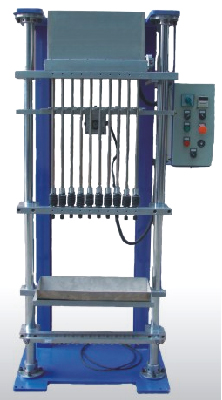

Cartridge Heater filling Machine TL - 338

Cartridge Heater Swaging Machine TL - 347
Cartridge Heater filling Machine TL - 338

It is mainly used to shrink the tube diameter or make the tube subulate.

Functions :

1. The machine can make the tube with good smooth finish.

2. 0peration mode: easy operation and maintenance.

3. Small size, compact in structure, easy operation and good design.


Main Technical Parameters :

1. Power supply: tri-phase 380V, 50Hz

2. Power: 5.5KW

3. Main shaft rotation speed: 272/rpm

4. Motor rotation speed: 1450/rpm

5. Feeding speed: 5-6m/min.


Is used to fill the tubes with MgO powder, and assure optimum centering of the coil in the cartridge heater and the MgO powder density.

Functions :

1. lt adopts PLC control, Electronic Governing control the vibration     frequency.

2. Tube diameter below 25.4mm, tube length 50mm -1000mm

3. Powder falling time and speed can be adjusted

4. 10,12,14,16,18,20 positions can be choosen from according to      your requirement. ( normally 10 positions)


Main Technical Parameters :

1. Power supply: single phase 220V+/-10% 50Hz

2. Rated power:400W

3. Air supply: 5-7kgf/cm2

4. Efficiency: 48OOpcs/8h (tube length 400mm)

5. Size: 960*68O*18OO(mm)

6. Weight: 300KG.




VIDEO
TL-347 Cartridge Heater Swaging Machine
TL-338 Cartridge Heater Filling Machine
